Type |
Outside
Diameter (mm) |
Inside
Diameter (mm) |
Height
(mm) |
No. of
bridges |
|

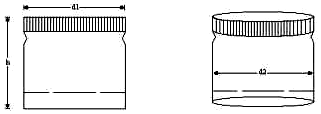

d1 |
d2 |
h |
|
Measure |
Tolerance
± |
Measure |
Tolerance
± |
Measure |
Tolerance
± |
|
20mm |
21.400 |
0 |
18.950 |
0.050 |
12.900 |
0 |
7 |
|
22mm |
22.425 |
0.025 |
22.125 |
0.025 |
15.200 |
0.050 |
7 |
|
25mm |
25.625 |
0.025 |
25.175 |
0.025 |
16.625 |
0.025 |
7 |
|
28mm |
28.425 |
0.025 |
28.125 |
0.025 |
18.075 |
0.025 |
8 |
|
29/35mm |
29.425 |
0.025 |
29.200 |
0.050 |
34.475 |
0.025 |
8 |
|
31.5mm |
31.625 |
0.025 |
31.100 |
0.050 |
12.775 |
0.025 |
9 |
|
38mm |
38.475 |
0.025 |
38.075 |
0.075 |
16.475 |
0.025 |
10 |
|
53mm |
53.350 |
0.050 |
51.700 |
0 |
18.500 |
0 |
13 |
 |
|
|
